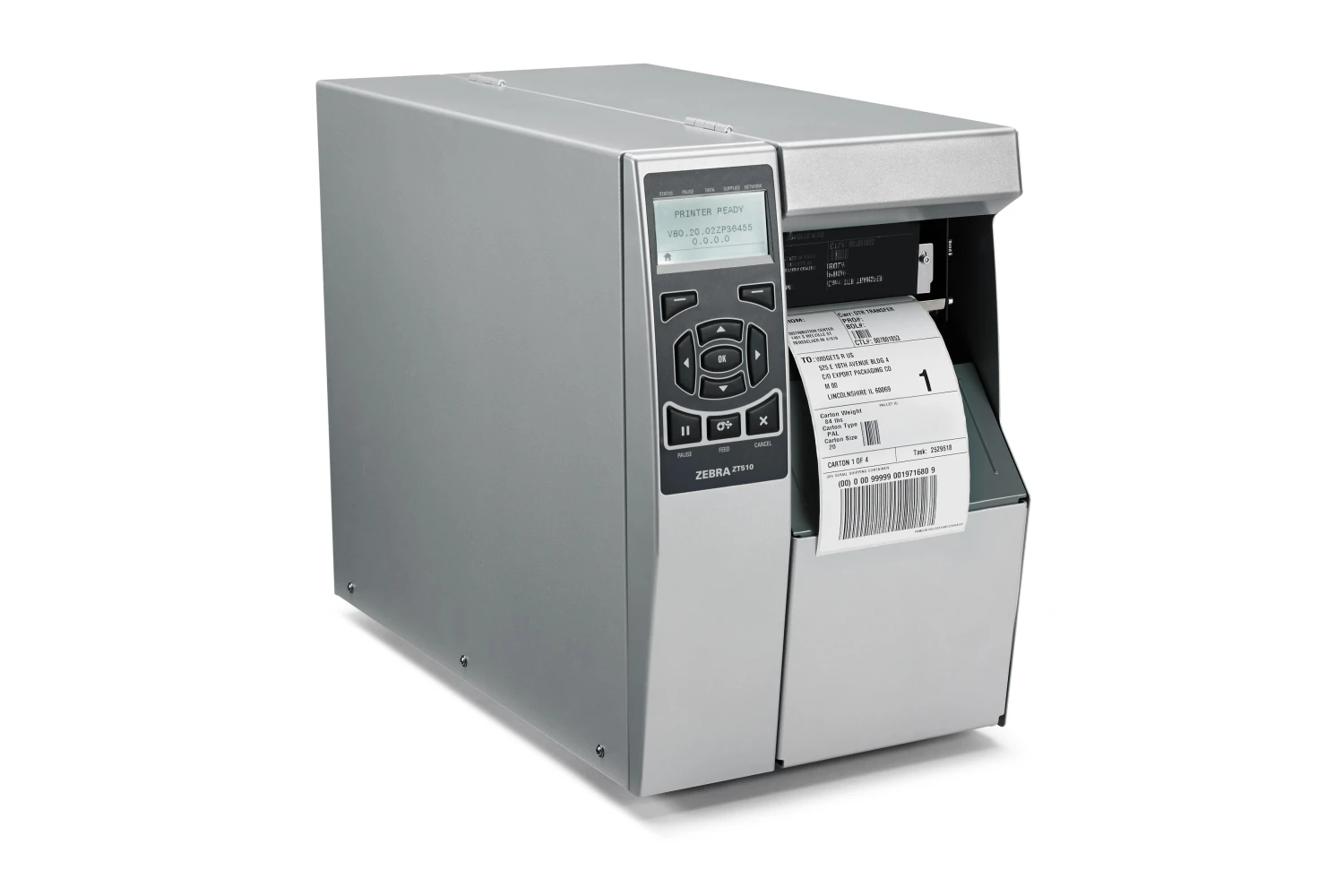

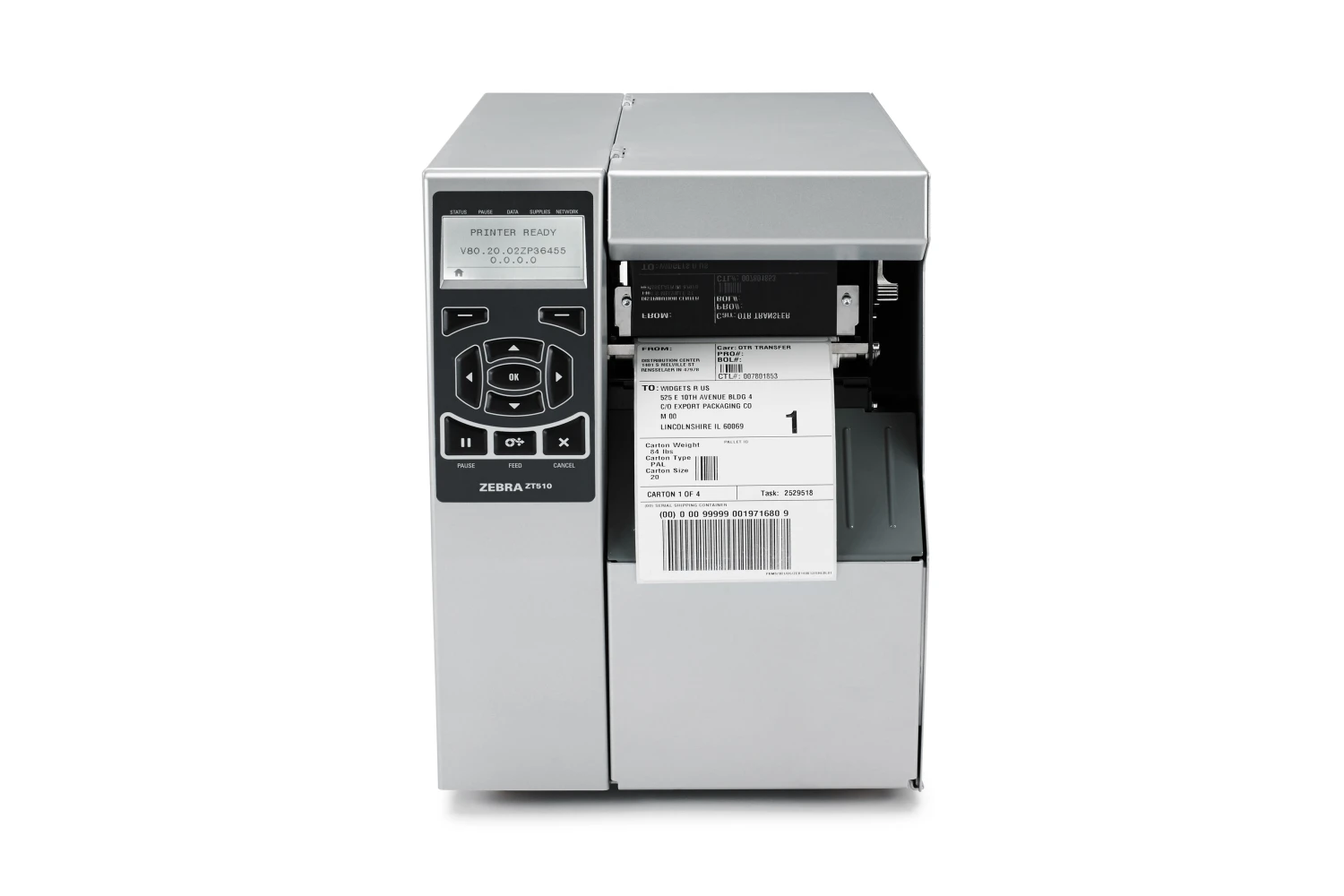

Zebra ZT510 Barcode Label Printer

The Zebra ZT510 is a reliable and cost-effective barcode label printer designed to meet the demands of high-volume environments. Built with industrial-grade materials and features, it ensures durability and quality in every print job.

Features and Capabilities

• Printing Technology: The ZT510 supports both thermal transfer and direct thermal printing, making it versatile for a variety of applications.
• Resolution: It offers a 300 dpi resolution, which ensures high-quality, clear prints of text, barcodes, and graphics.
• Print Speed: The printer supports a maximum print speed of 305 mm/sec, providing fast printing for high-volume requirements.
• Print Length and Width: The ZT510 can print labels with a maximum print length of 3810 mm and a max print width of 104 mm, making it suitable for a wide range of label sizes.
• Direct Printing: The ZT510 can print directly on labels using thermal transfer or direct thermal printing methods.

Media Compatibility

• Paper/Media Types: Compatible with continuous, die-cut, notch, and black-mark labels, offering flexibility for different media needs.
• Paper Thickness: It supports paper thickness up to 0.003 in, accommodating a wide range of label materials.
• Paper Sensor: Equipped with dual media sensors (transmissive and reflective), the ZT510 ensures accurate media detection for precision printing.
• Tape Size: Supports a 203 mm tape size with a maximum tape width of 114 mm, providing flexibility for different types of labels.

Storage and Interface

• Memory: The printer is equipped with 512MB RAM and 2GB Flash storage, ensuring plenty of space for storing label designs, fonts, and other data.
• Connectivity: The ZT510 offers multiple built-in connectivity options, including USB, LAN, Bluetooth, and Serial. It supports Link-OS Solutions, Zebra Designer, and other software for enhanced device management.

Software and Features

• Font and Barcode Support: The ZT510 includes 16 resident expandable ZPL II bitmap fonts and Unicode support for multi-language printing. It also supports various barcodes such as Code 39, UPC, EAN, and QR Codes, enabling versatile barcode printing.
• Mirror Printing: Offers mirror printing, allowing for flexible label designs.
• Software Compatibility: The printer supports ZPL and ZPL II languages and offers XML-enabled printing for easy integration into various systems.

Power and Durability

• Housing Color: The ZT510 comes in a gray housing color, with a metal body for durability in industrial environments.
• Dimensions: The printer has dimensions of 268.2 x 395.68 x 512.3 mm, making it a compact yet robust solution for demanding applications.
• Power Supply: It features an auto-detectable power source that operates on 90-265 VAC, consuming 250 Watts of power.
• Operating Conditions: The printer is designed to work in temperatures ranging from 0°C to 40°C and humidity levels from 20% to 85%, making it suitable for a variety of operational environments.

Consumables and Warranty

• Ribbon Support: The ZT510 supports ribbons with a width of 51 mm to 110 mm and a core diameter of 25.4 mm.
• Warranty: The ZT510 comes with a 1-year service warranty (excluding the print head and adapter), which requires the original box for service claims.
