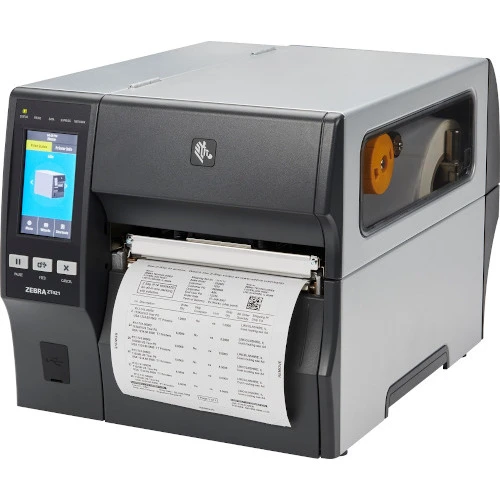

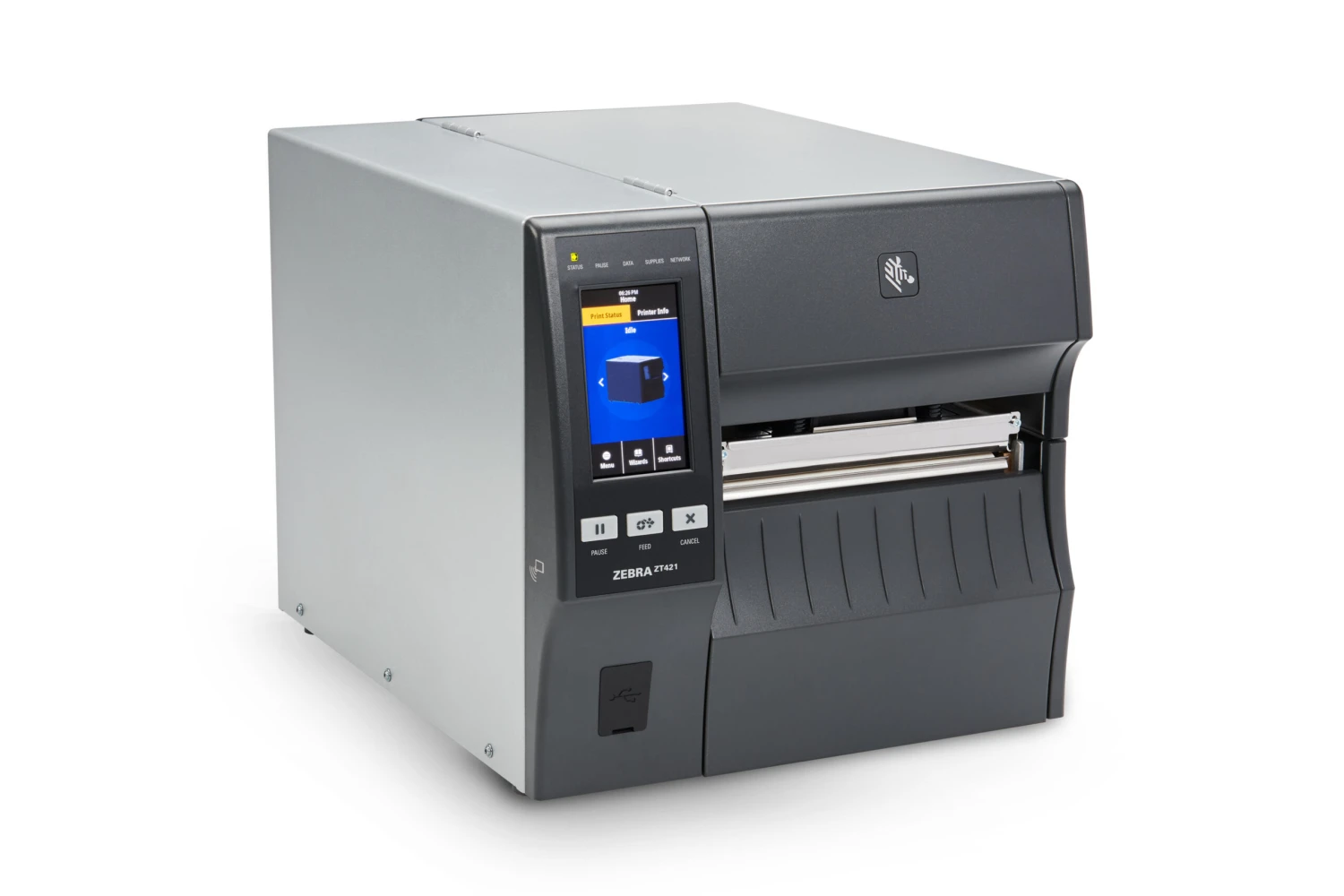

Zebra ZT421 Barcode Label Printer

The Zebra ZT421 is an industrial-grade barcode label printer built for reliable, high-performance printing in demanding environments. With its versatile printing capabilities and robust construction, it's ideal for businesses that require continuous and high-quality label printing.

Features and Capabilities

• Printing Technology: The ZT421 uses direct thermal printing, which eliminates the need for ink or toner, making it a cost-effective solution for printing labels.
• Resolution: It offers a 203 dpi resolution, ensuring clear, legible text and barcodes for various applications.
• Print Speed: With a maximum print speed of 305 mm/sec, the ZT421 provides efficient printing for high-volume environments.
• Print Length and Width: The printer supports a maximum print length of 2591 mm and a maximum print width of 168 mm, making it suitable for wide labels and long print jobs.
• Direct Printing: Capable of direct thermal printing, eliminating the need for ribbons and reducing maintenance costs.

Media Compatibility

• Paper/Media Types: Supports various types of media including continuous, die-cut, notch, and black-mark labels, offering flexibility for different printing needs.
• Paper Thickness: The ZT421 can handle paper thickness from 0.058 mm to 0.25 mm, providing compatibility with a wide range of label materials.
• Paper Sensor: Features dual media sensors for accurate media detection and proper label alignment.
• Max Label Length: Supports a maximum label length of 591 mm, enabling large and extended label printing.

Storage and Interface

• Memory: The ZT421 is equipped with 256MB RAM and 512MB Flash storage, providing ample space for printing and storing label designs, fonts, and other data.
• Connectivity: Offers a wide range of connectivity options, including USB, LAN, Bluetooth, and Serial ports for seamless integration into your existing setup.

Software and Features

• Font and Barcode Support: Includes 16 resident expandable ZPL II bitmap fonts and two scalable ZPL fonts, allowing for customization and versatile label designs.
• Mirror and Vertical Printing: The ZT421 supports mirror-image printing and vertical printing, making it adaptable for different printing applications.
• Software Compatibility: Supports ZPL printer language, which is compatible with many Zebra printers and software, making it easy to integrate into a variety of systems.

Power and Durability

• Housing Color: The printer features a dark gray housing color and is built with a metal body for added durability.
• Dimensions: The ZT421 has dimensions of 324 x 336 x 495 mm, making it compact enough for use in most industrial workspaces.
• Weight: The printer weighs 18.14 kg, providing stability and ensuring that it can handle large workloads.
• Power Source: The ZT421 supports a 100 - 240V power supply, providing flexibility in various regions and environments.
• Operating Conditions: The printer operates efficiently in environments with temperatures between 0°C to 40°C and humidity levels between 20% to 85%, making it suitable for a wide range of industrial environments.

Consumables and Warranty

• Ribbon Support: The ZT421 does not support color ribbons, but its direct thermal technology eliminates the need for ribbons.
• Warranty: The printer comes with a 1-year service warranty (excluding print head and adapter). The warranty claim requires the original box.
