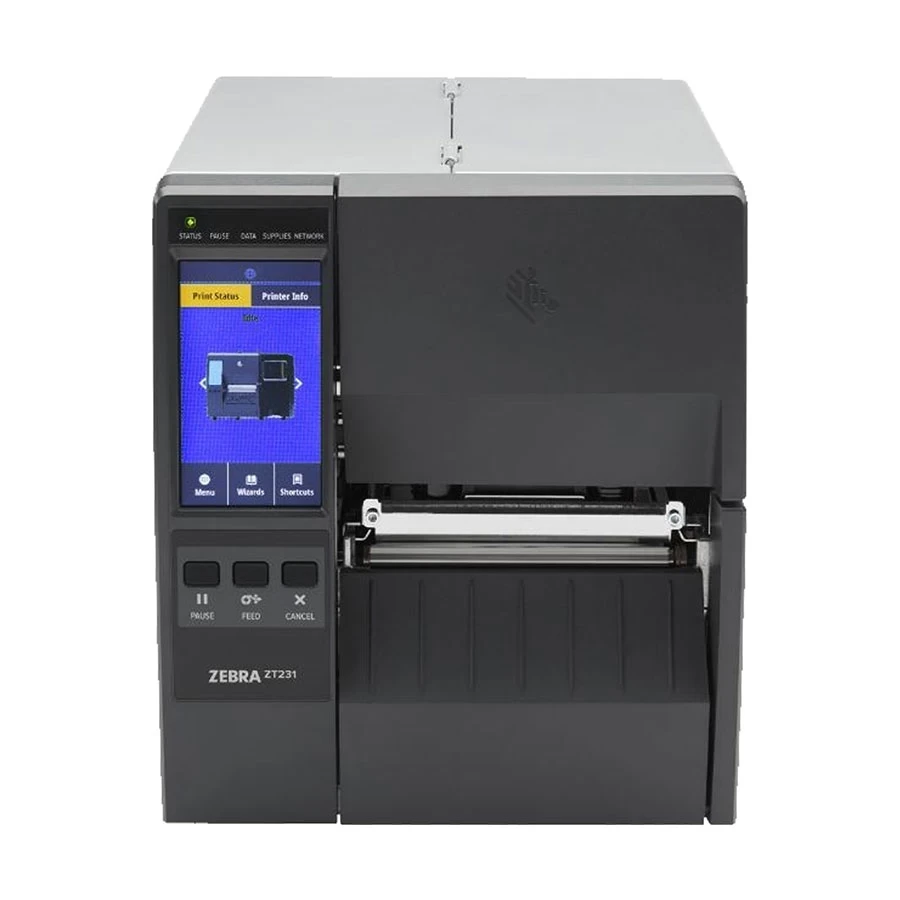

Zebra ZT231 Barcode Label Printer

The Zebra ZT231 is a reliable and versatile barcode label printer, designed for high-performance applications in industrial and commercial environments. This model offers a robust feature set, including support for thermal transfer and direct thermal printing, making it ideal for printing a wide range of labels, tags, and barcodes.

Features and Capabilities

• Printing Technology: The ZT231 supports both thermal transfer and direct thermal printing, providing flexibility for printing durable labels that can withstand various environmental conditions.
• Resolution: It offers a 300 dpi resolution, ensuring that labels, barcodes, and graphics are printed with sharp clarity.
• Print Speed: The ZT231 achieves a maximum print speed of 8 inches per second, balancing speed with high-quality output for both low and high-volume printing needs.
• Print Length and Width: It can print labels up to 1854 mm in length and 104 mm in width, making it suitable for a wide range of label sizes.
• Direct Printing: The ZT231 supports direct printing, which allows for a simpler printing process without the need for additional equipment.

Media Compatibility

• Paper/Media Types: The ZT231 is compatible with a variety of media types, including continuous, die-cut, notch, and black mark labels. This versatility makes it adaptable to different labeling tasks.
• Paper Thickness: The printer supports a wide range of paper thicknesses, from 0.076 mm to 0.25 mm, accommodating different label materials.
• Sensors: Equipped with moveable transmissive and reflective sensors, the ZT231 ensures accurate media detection and positioning.

Storage and Interface

• Memory: The ZT231 is equipped with 256MB of SDRAM and 256MB of Flash memory, providing ample space for storing fonts, print jobs, and user data.
• Interfaces: The printer includes USB, LAN, and serial interfaces for easy integration with existing systems. Additionally, it supports optional 802.11ac Wi-Fi and 10/100 Ethernet interface cards for enhanced connectivity.

Software Compatibility

• Fonts and Barcodes: The ZT231 offers Z7 bitmapped fonts and supports multiple Unicode-compliant scalable fonts. It is capable of printing both linear barcodes (such as Code 39, UPC-A, and EAN-13) and 2D barcodes (including QR Code, DataMatrix, and PDF417), providing broad barcode printing capabilities.
• Printer Languages: The printer supports several languages, including ZBI 2.0, ZPL, ZPL II, EPL, and EPL II, ensuring compatibility with various printing environments and applications.
• Compliance: The ZT231 is ENERGY STAR certified, making it an environmentally friendly choice that helps reduce energy consumption.

Power and Durability

• Power Source: The ZT231 operates on 100-240VAC, 50-60Hz, providing efficient power usage for industrial environments.
• Operating Conditions: The printer operates in a temperature range of 5°C to 40°C and humidity levels from 20% to 85% (non-condensing), making it suitable for most business environments.
• Storage Conditions: The ZT231 can be stored in temperatures from -40°C to 60°C and humidity levels from 5% to 85%, offering durability in various conditions.

Physical Description

• Housing: The ZT231 features a black and gray housing made from a metal frame and metal enclosures, ensuring durability and strength in industrial settings.
• Dimensions: The printer has dimensions of 432 x 241 x 279 mm, making it compact yet sturdy enough for demanding environments.
• Weight: Weighing 9.1 kg, the ZT231 is a heavy-duty printer that is built to handle high-volume tasks.

Consumables and Warranty

• Ribbon Compatibility: The ZT231 uses ribbons with a maximum length of 450M, a width range from 51mm to 110mm, and a 25.4mm ribbon core, allowing for flexibility in ribbon sizes for various printing applications.
• Warranty: The ZT231 comes with a 1-year service warranty (excluding print head and adapter). The warranty requires the original box when claiming service.
