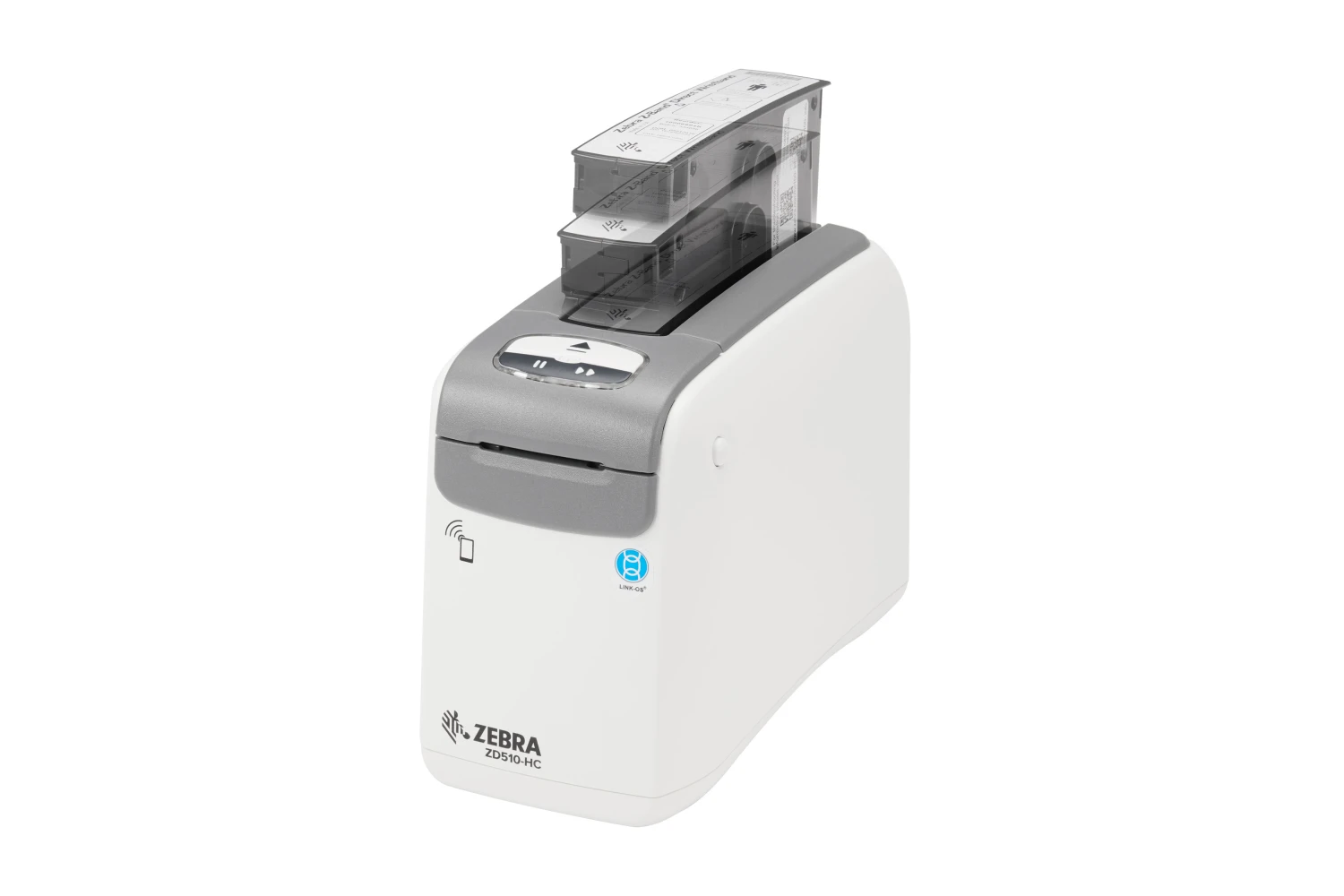

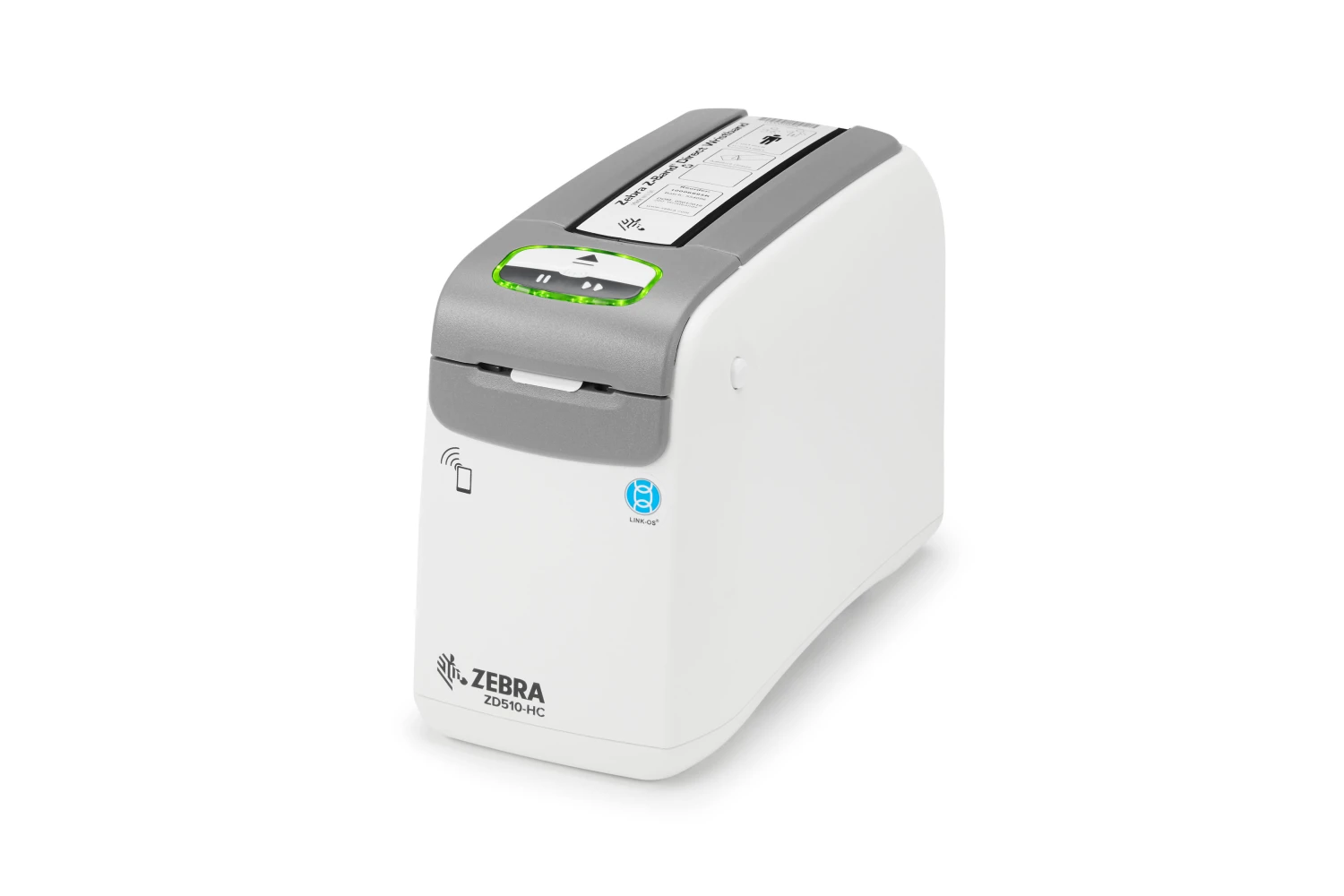

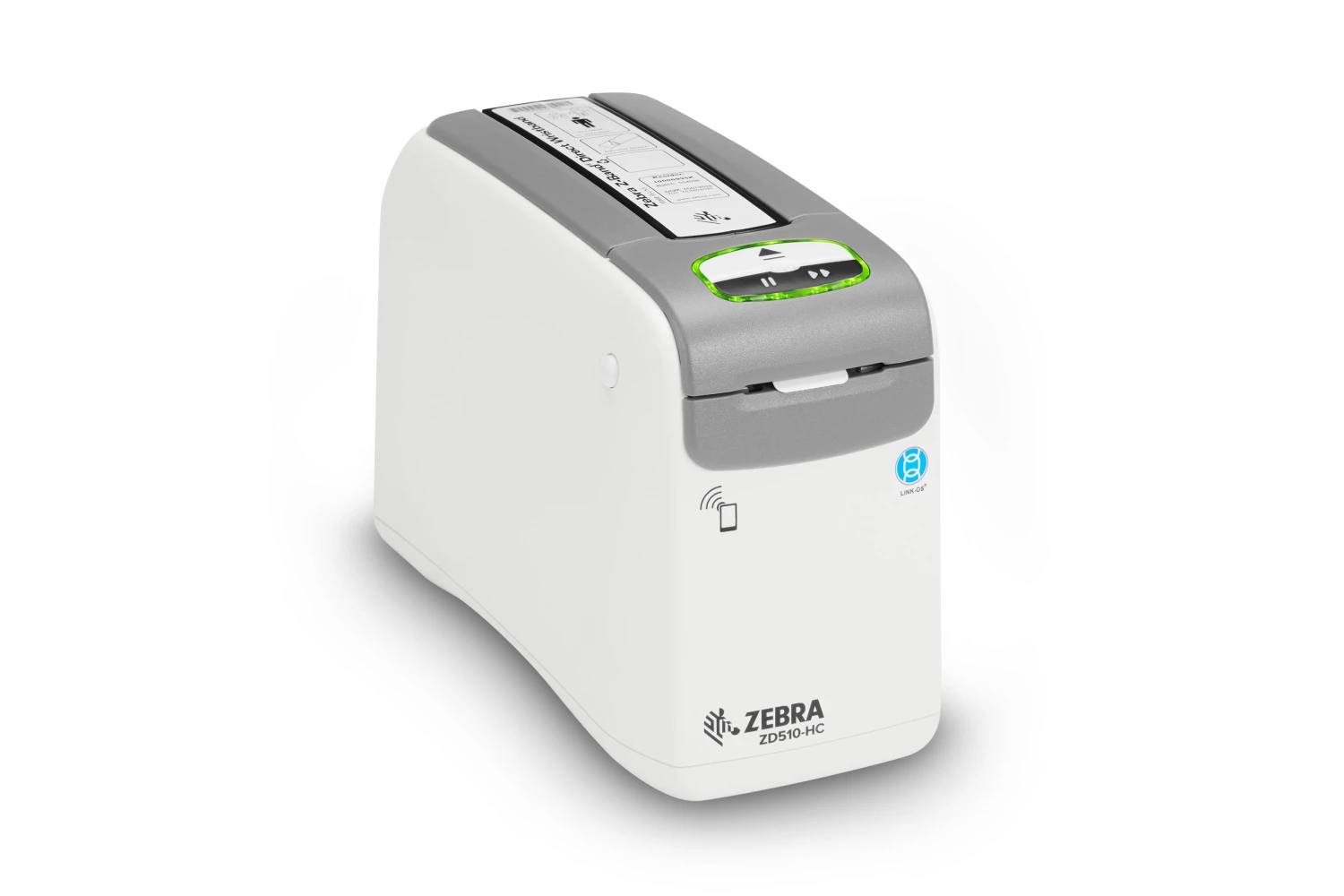

Zebra ZD510-HC Barcode Label Printer – Reliable and Compact for Healthcare

The Zebra ZD510-HC is a specialized barcode label printer designed for healthcare environments, offering reliable, high-quality direct thermal printing. With its compact design and advanced features, this printer is perfect for printing wristbands, labels, and other healthcare-related materials efficiently and accurately.

Features and Capabilities

• Printing Technology: The ZD510-HC uses direct thermal printing, eliminating the need for ink or toner and making it cost-effective and easy to maintain. It is designed for printing healthcare-specific items like wristbands.
• Resolution: With a 300 dpi resolution, the ZD510-HC delivers clear and precise prints, ensuring that details on wristbands and labels are legible and durable.
• Print Speed: The ZD510-HC offers a maximum print speed of 120 mm/sec, which is optimal for quick printing of wristbands and other materials in a healthcare setting.
• Direct Printing: The printer supports direct printing, ensuring seamless operation for simple print jobs like wristbands and labels.

Media Compatibility

• Tape and Media: The ZD510-HC supports direct thermal printing for media such as wristbands and labels. While specific tape sizes are not mentioned, it supports Zebra's Z-Band Splash Wristband, which is designed for healthcare applications.
• Wristband Compatibility: This printer is specifically designed to print Zebra 1 x 10inch Z-Band Splash Wristband Direct Thermal Ribbon (#10012717-6K), making it an excellent solution for printing healthcare wristbands.

Storage and Interface

• Memory: The ZD510-HC is equipped with 16MB SDRAM and 8MB Flash storage, ensuring smooth operation and storage of print jobs.
• Interface: The printer features multiple interface options, including USB, LAN, Wi-Fi, and Bluetooth, offering flexibility for connecting to various devices and systems in healthcare environments. Wi-Fi is available as an optional interface.

Software Compatibility

• Font Styles: The ZD510-HC includes 16 resident expandable bitmap fonts, which allows for flexible font choices in labels and wristbands.
• Mirror Printing: The printer supports mirror printing, making it ideal for applications that require printing on one side and reading the image from the opposite side.
• Barcode Types: The ZD510-HC supports a wide variety of 2D barcodes, including PDF417, MicroPDF-417, Code 49, Maxicode, Codablock, Data Matrix, QR Code, and Aztec, ensuring compatibility with various barcode standards.
• Printer Language: The printer supports ZPL and ZPL II printer languages, providing flexibility for integration with existing systems.

Power and Durability

• Power Source: The ZD510-HC operates on 100-240VAC, 50-60Hz, with a power consumption of 70W, making it energy-efficient while providing reliable performance.
• Operating Conditions: It operates in a temperature range of 32°C to 104°C and humidity levels from 20% to 85% (non-condensing), making it suitable for healthcare environments.
• Storage Conditions: The printer can be stored in temperatures ranging from -40°C to 140°C and humidity levels from 5% to 85% (non-condensing), ensuring durability in diverse storage conditions.

Physical Description

• Housing Color and Material: The ZD510-HC has a white & gray housing, which gives it a clean, professional look that suits healthcare settings.
• Dimensions: The printer measures 242 x 127 x 178 mm, making it compact and easy to integrate into small spaces or mobile healthcare setups.
• Weight: The ZD510-HC weighs 1.4 kg, which is lightweight and easy to handle.

Consumables and Warranty

• Consumables: The printer uses Zebra 1 x 10inch Z-Band Splash Wristband direct thermal ribbon (#10012717-6K), which is designed for healthcare wristband applications. The printer is compatible with 350 wristbands per roll, with 6 rolls per box.
• Warranty: The ZD510-HC comes with a 1-year service warranty (excluding print head and adapter). The box is mandatory when claiming the warranty.
