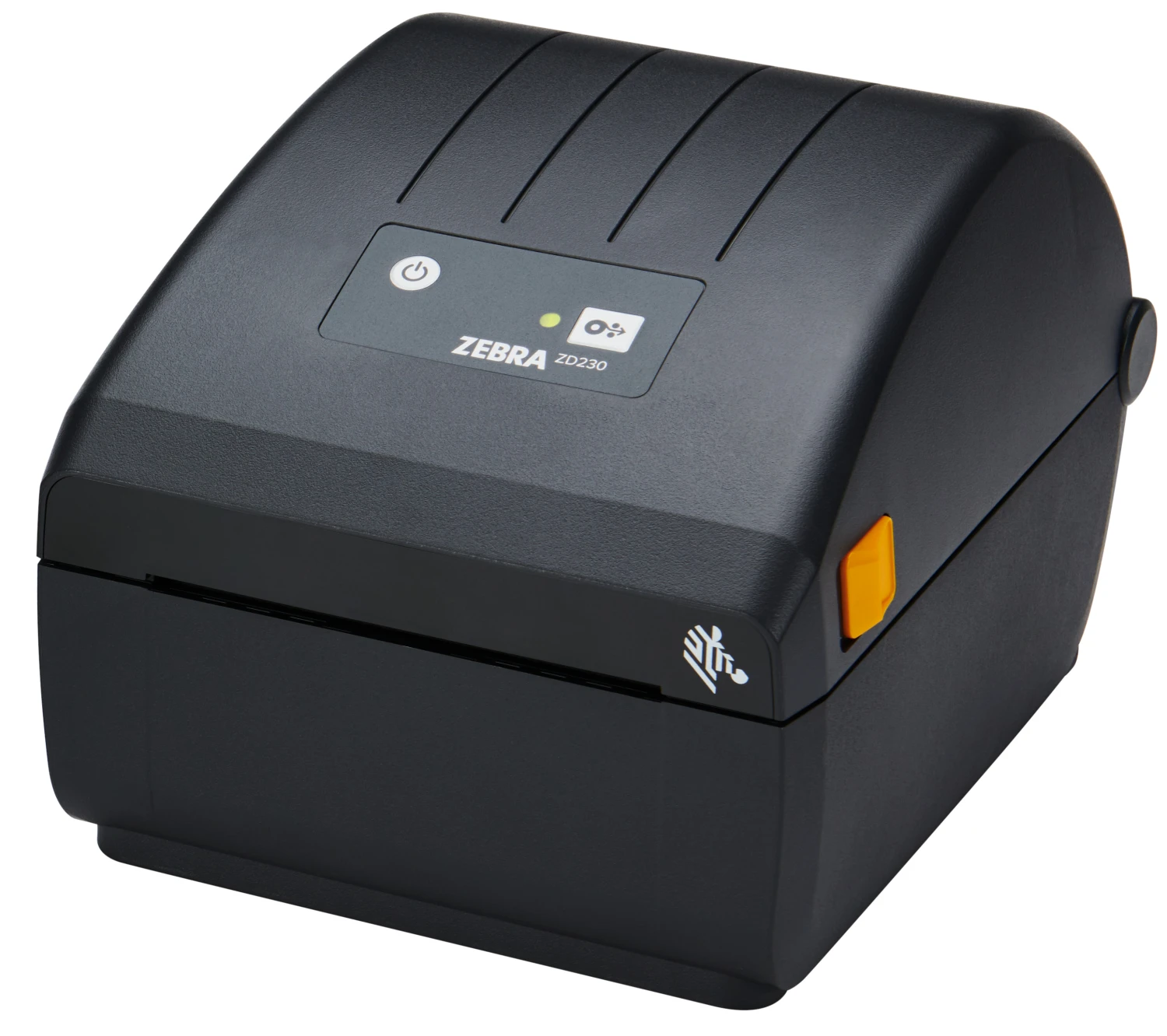

Zebra ZD230 Barcode Label Printer – Efficient and Reliable

The Zebra ZD230 is a barcode label printer designed to deliver consistent, high-quality prints for a variety of applications. With support for both thermal transfer and direct thermal printing methods, it is a versatile solution ideal for businesses looking to print labels, barcodes, and receipts with ease.

Features and Capabilities

• Printing Technology: The ZD230 supports both thermal transfer and direct thermal printing, offering flexibility for different types of applications. Thermal transfer is ideal for long-lasting, durable prints, while direct thermal is cost-effective and perfect for short-term use.
• Resolution: With a 203 dpi resolution, the ZD230 ensures clear, sharp prints, making it perfect for barcodes, text, and graphics.
• Print Speed: The ZD230 offers a maximum print speed of 152 mm/sec, allowing for quick and efficient printing of large volumes of labels or receipts.
• Print Width: The printer can handle a maximum print width of 104 mm at 203 dpi, suitable for standard labels and barcode printing.

Media Compatibility

• Paper Types: The ZD230 is compatible with various media types, including roll-fed or fan-fold, die-cut or continuous labels with or without black marks, tag stock, continuous receipt paper, and wristbands, offering versatility for different printing needs.
• Paper Thickness: The ZD230 supports paper thicknesses ranging from 0.08 mm (min) to 0.1905 mm (max), covering a wide range of paper types.
• Sensors: Equipped with a movable black mark sensor, fixed off-center gap sensor, and various other sensors, the printer ensures accurate paper alignment and reliable printing results.

Storage and Interface

• Memory: The ZD230 comes with 128MB SDRAM and 256MB Flash storage, providing ample memory for larger print jobs and seamless operation.
• Interface: The printer is equipped with a USB interface, making it easy to integrate into various systems, whether in an office or industrial environment.

Software Compatibility

• Font Styles: The ZD230 supports 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, and five resident expandable EPL2 fonts, providing flexibility for text design and layout.
• Barcode Types: The printer supports a wide variety of 1D and 2D barcode types, including Code 39, Code 128, PDF417, QR Code, DataMatrix, and many others, ensuring compatibility with various barcode standards.
• Printer Language: The ZD230 supports ZPL and EPL printer languages, allowing for easy integration into existing systems.

Power and Durability

• Power Source: The ZD230 supports a 100-240VAC input with a frequency of 50-60Hz, making it compatible with various global power systems.
• Operating Conditions: It operates within a temperature range of 4.4°C to 41°C and humidity levels from 10% to 90% (non-condensing), ensuring reliable performance in most environments.
• Storage Conditions: The printer can withstand temperatures from -40°C to 60°C and humidity levels from 5% to 95% (non-condensing) when stored, ensuring durability under different conditions.

Physical Description

• Housing Color and Material: The ZD230 features a black housing, made of durable materials for extended use in demanding environments.
• Dimensions: For thermal transfer printing, the printer has dimensions of 267 x 197 x 191 mm, while in direct thermal mode, it measures 220 x 176 x 151 mm, making it compact enough for various work environments.
• Weight: The ZD230 weighs 1.1 kg, making it lightweight and easy to move around.

Consumables and Warranty

• Consumables: Specific consumable details are not mentioned, but the printer uses thermal transfer ribbons and direct thermal paper, both of which are widely available.
• Warranty: The ZD230 comes with a 1-year warranty (excluding the print head and adapter). The box is mandatory for warranty claims.
