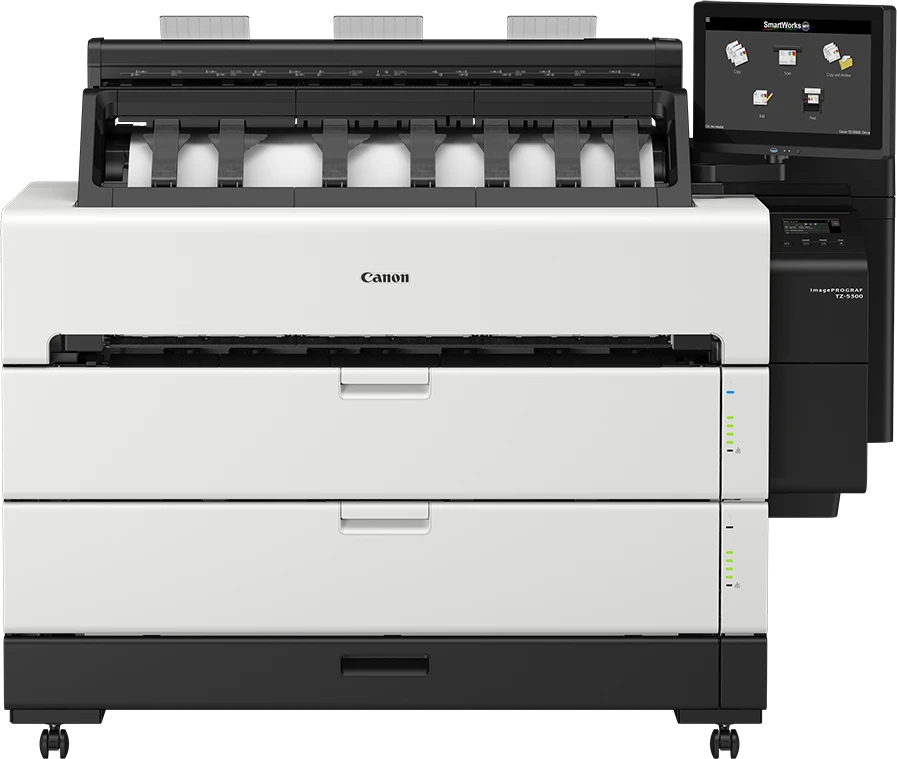

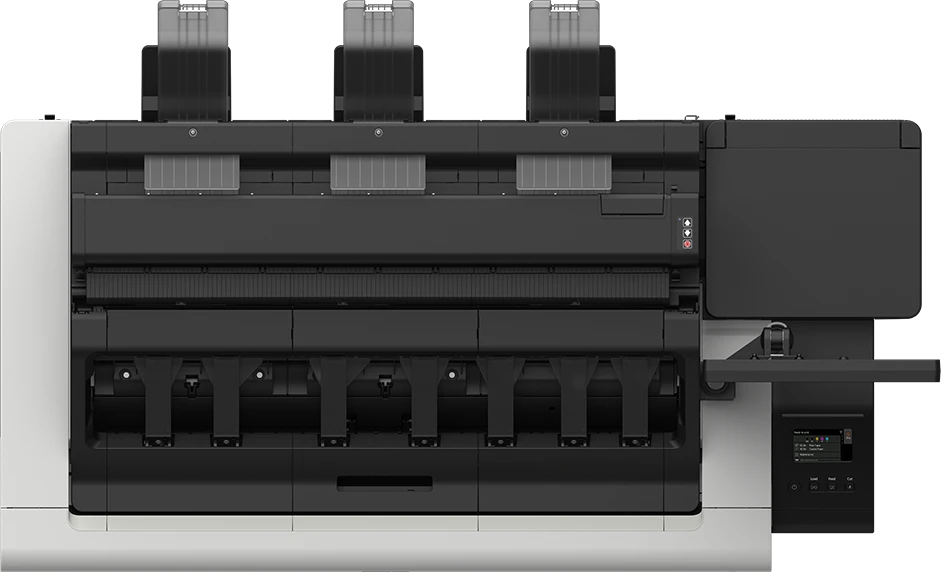

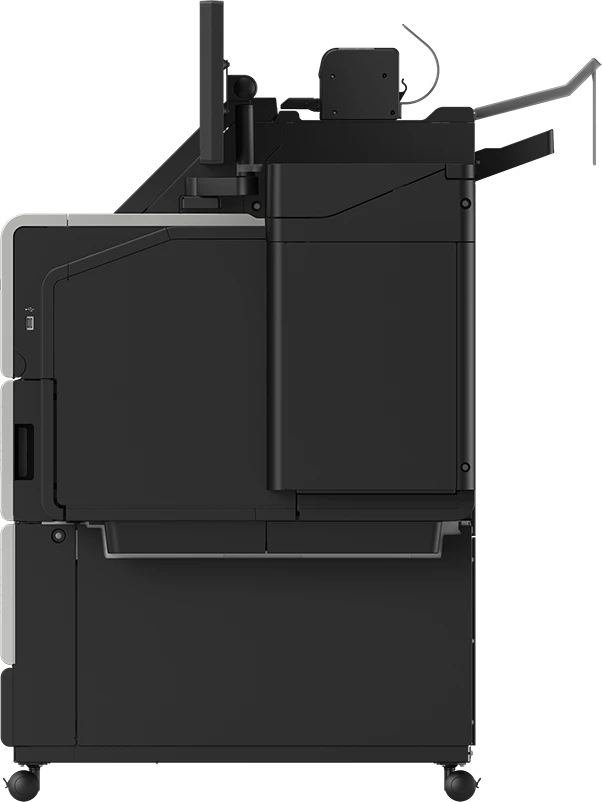

Canon imagePROGRAF TX-5410 – Large Format Printer

The Canon imagePROGRAF TX-5410 is a robust, single-function, large-format printer tailored for professional applications such as CAD, architecture, and design. It delivers high-quality prints with enhanced precision and speed, ideal for creating detailed technical drawings and presentations.

Key Features:

• Print Technology: Ink Tank technology ensures high-quality, color-accurate prints.
• Print Speed:
• Black: 1.1 ppm (CAD Drawing on plain paper, A0, Standard).
• Color: 1.1 ppm (CAD Drawing on plain paper, A0, Standard).
• Print Resolution: 2400 x 1200 dpi, delivering crisp lines and high-resolution prints.
• Duplex Printing: Manual duplex for double-sided prints.
• Standard Print Languages: SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF1.02).
• Photo Printing: Yes, for excellent photo-quality prints.

Paper Handling:

• Paper Size:
• Minimum: A4.
• Maximum: A0 (33.1 x 46.8 inches).
• Custom Paper Size: 203.2 mm – 917 mm.
• Paper Types: Plain paper, coated paper, CAD translucent matte film.
• Paper Thickness: 0.07 – 0.8 mm.
• Paper Width: 203.2 mm – 917 mm.
• Roll Paper: Dual roll support, front load, and front output/top output.

Display:

• Display Screen: 4.3-inch color LCD touch panel for easy operation.

Memory & Storage:

• Printer Memory: 2 GB.
• Storage: 500 GB for efficient handling of large files.
• Memory Card Slot: No.

Connectivity:

• Interface: USB, LAN, Wi-Fi for seamless connectivity.
• Mobile Printing: Yes, supports mobile printing with Apple AirPrint and Canon Print Service.
• Borderless Printing: Yes, for printing edge-to-edge on supported media.

Consumables:

• Starter Ink:
• Matte Black: 330 ml.
• Black, Cyan, Magenta, Yellow: 160 ml each.
• Consumables Available:
• PFI-8340 (330 ml), PFI-8740 (700 ml) ink bottles.
• Cartridges Required: 5 (2 Black, 3 Color).

Power:

• Power Source: AC 100 - 240 V, 50 - 60 Hz.
• Power Consumption: Optimized for energy efficiency.

Physical Attributes:

• Body Color: Black & White.
• Dimensions: 1548 x 762 x 1126 mm (including all components).
• Weight: 206 kg (including all components).

Included Components:

• Canon imagePROGRAF TX-5410 Printer.
• User Manual.

Warranty:

• 1-Year Service Warranty.
