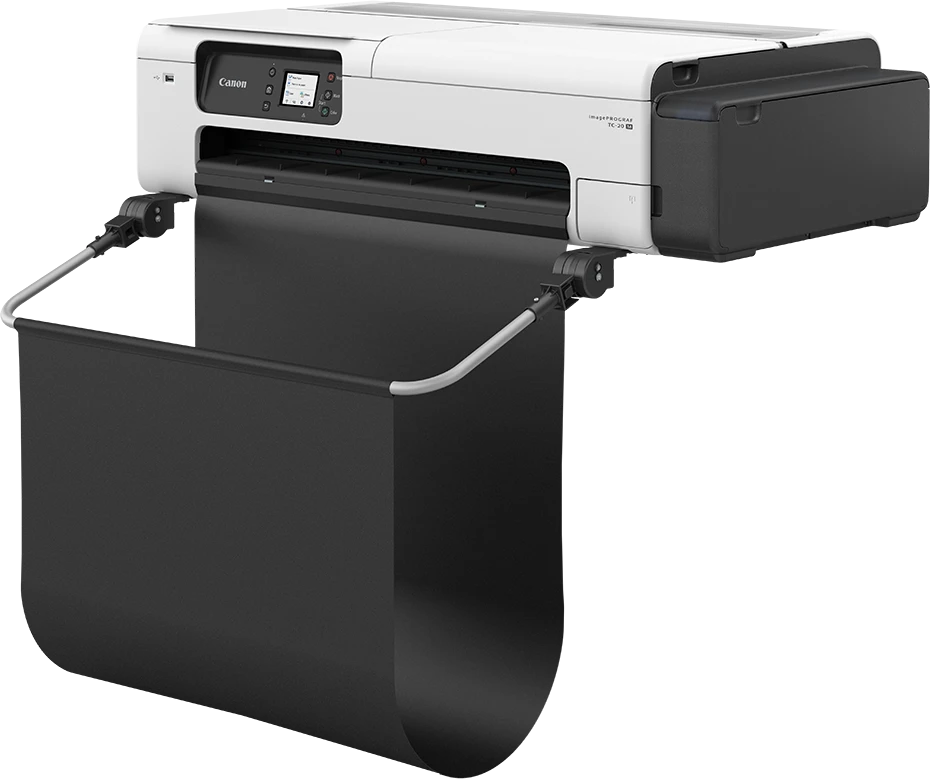

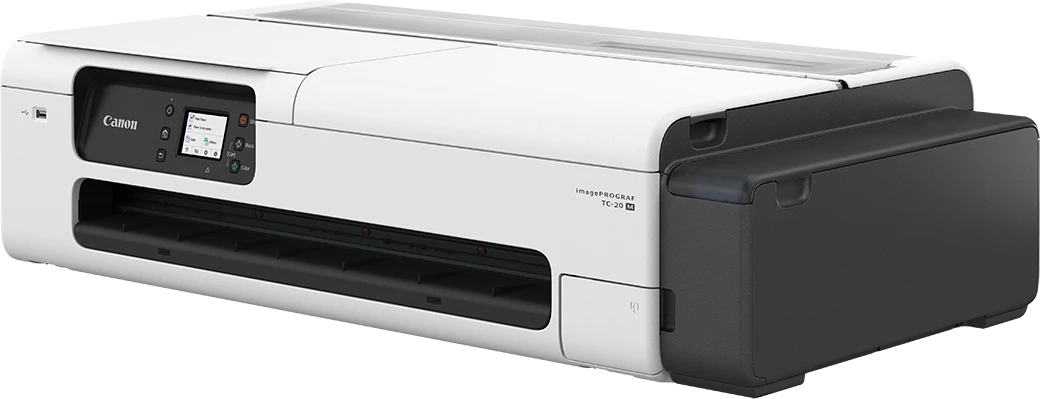

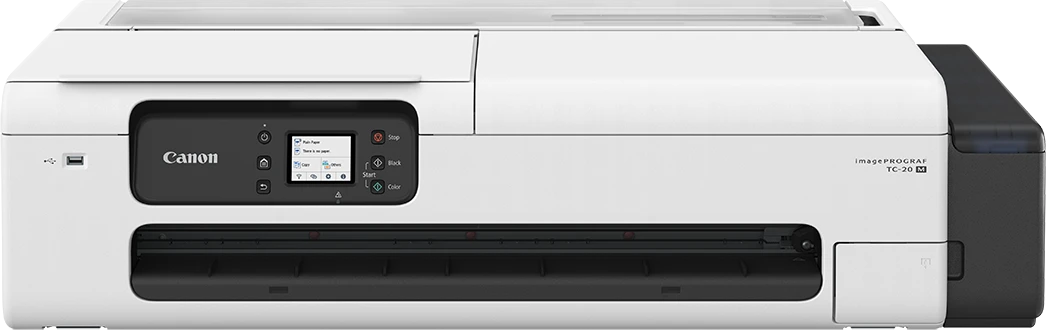

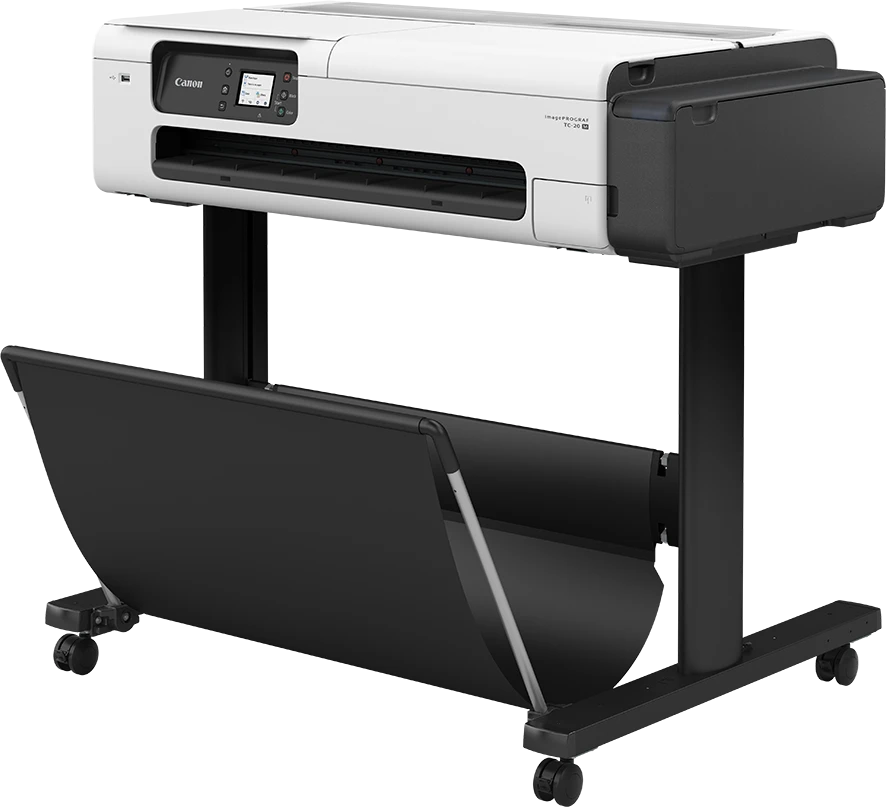

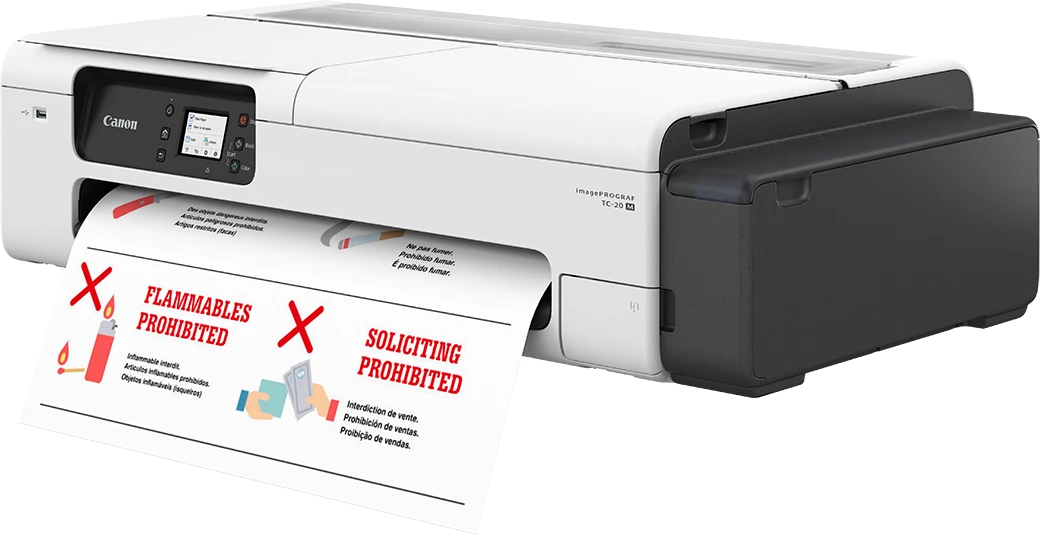

Canon imagePROGRAF TC-20 24 Inch Single Function Large Format Printer Without Stand (1 Year Service)
Key Specification
‣ Output Color - Color
‣ Print Speed (Black) - 1.87ppm/
32 sec, CAD Drawing - (Draft)
‣ Print Speed (Color) - 1.87ppm/
32 sec, CAD Drawing - (Draft)
‣ Print Paper Size Max. –
A1
‣ Interface (Built-in) -
USB, LAN, WiFi
Product Specification
|
Brand |
Canon |
|
Model |
Canon
imagePROGRAF TC-20 |
|
Series |
imagePROGRAF |
|
Type |
Ink Tank |
|
Functions |
Print Only |
|
Printer
Type |
Single
Function Large Format Printer |
|
Output Color |
Color |
|
Print
Function |
Print
Technology: Ink Print
Speed (Black): 1.87ppm/ 32 sec, CAD Drawing - (Draft) Print
Speed (Color): 1.87ppm/ 32 sec, CAD Drawing - (Draft) Print
Resolution (Pixel): 2400 x 1200 dpi Printer
Resolution (Black): 2400 x 1200 dpi Printer
Resolution (Color): 2400 x 1200 dpi Duplex
Print: Manual Standard
Print Languages: SG Raster (Swift Graphic Raster) Photo
Printing: Yes |
|
Paper Data |
Print Paper Size Minimum: A4 Print Paper Size: A1, A2, A3, A4 Print Paper Size Max: A1 Print Paper Size Max. (Inch): 23.4 x 33.1 Max. Paper Size Custom: 203.2 - 917 mm Paper Type: Plain paper, coated paper, CAD
translucent matte film only Paper Thickness: 0.08 ～ 0.28 mm Paper Width: 297 ~ 610 mm Paper Handling - Roll Width: 297 - 610 mm
(A3 width to 24 inch), Cut Sheet Width: 210 - 297 mm (A3, A4, Letter) |
|
Technical
Data |
Display
Screen: Yes Display:
LCD (2.7 inch/6.7 cm) (Touch Screen, Color) |
|
Memory & Storage |
Printer Memory: 1GB Printer Memory Type: Standard |
|
Connectivity |
Interface
(Built-in): USB, LAN, WiFi Networking:
LAN, WiFi |
|
Performance |
IEEE 802.3 10base-T, IEEE 802.3u 100base-TX,
SNMP, HTTP, TCP/IP (IPv4/IPv6) , IEEE802.11b/g/n, WPA-PSK (TKIP/AES) ,
WPA2-PSK (TKIP/AES) , WPA3-SAE (AES), WPA-EAP (AES)*2, WPA2-EAP (AES)*2 ,
WPA3-EAP (AES)*2 . |
|
Consumable |
Starter
Consumables - Bundled Starter Ink: 70 ml (BK, C, M, Y) Consumable:
PFI-050 (70 ml) Black / Cyan / Magenta / Yellow, Print Head - PF-08,
Maintenance Cartridge - MC-32. Consumable
Type: Ink Cartridge Number
of Cartridges Required: 4 Number
of Black Cartridges Included: 1 Number
of Color Cartridges Included: 3 |
|
Power |
Power Source/ Power Consumption: AC 100 -
240 V, 50 - 60 Hz |
|
Regulatory
& Listing |
Unmentioned |
|
Physical Attributes* |
Body Color: Black & White Dimensions: 968 × 545 × 395 mm Weight (Kg): 43 kg Included Components: imagePROGRAF TC-20, US
AC Power Cable, Maintenance Cartridge (Installed), 4 Ink Tanks (70 ml each:
BK/C/M/Y), Ethernet Card (built-in), USB 2.0 High-speed Interface,
Installation Guide, User Registration Card, Media Flyer, Warranty Statement |
|
Warranty |
Warranty
Details: 1 Year Service (Without Adapter) (Box Mandatory While Claiming) |
|
* Product may vary with different Kit or Version |
|
Product Details
Canon
imagePROGRAF TC-20 – Single Function Large Format Printer
The Canon imagePROGRAF TC-20
is a high-performance single function large format printer designed for
professionals and businesses in need of high-quality CAD drawings, engineering,
and other large format prints. With advanced ink technology and exceptional
print resolution, it delivers precise results for a variety of media types and
sizes.
Features:
- Print Technology:
Ink Tank, with precise ink dispersion for high-quality output.
- Print Speed:
- Black:
1.87 ppm (32 sec per CAD drawing in draft mode).
- Color:
1.87 ppm (32 sec per CAD drawing in draft mode).
- Print Resolution:
2400 x 1200 dpi for both black and color prints, ensuring sharp and
detailed output.
- Duplex Printing:
Manual duplex printing option for double-sided printing.
- Photo Printing:
Supports photo printing, ideal for rendering graphics with high clarity.
Paper
Handling:
- Print Paper Size:
- Minimum:
A4
- Maximum:
A1 (23.4 x 33.1 inches)
- Custom Sizes:
203.2 - 917 mm
- Paper Types:
Compatible with plain paper, coated paper, and CAD translucent matte film.
- Paper Thickness:
0.08 – 0.28 mm, suitable for various professional-grade paper types.
Display
and Connectivity:
- Display:
2.7-inch color LCD touchscreen for easy navigation and operation.
- Connectivity:
Supports USB, LAN, and WiFi interfaces for seamless connection and
printing.
- Networking:
IEEE 802.3 10base-T, IEEE 802.3u 100base-TX, SNMP, HTTP, TCP/IP
(IPv4/IPv6), and Wi-Fi support.
Consumables:
- Ink Cartridges:
Includes 4 starter ink cartridges (70 ml each: Black, Cyan, Magenta,
Yellow).
- Additional Consumables: PFI-050 ink cartridges (70 ml), PF-08 print head, and
MC-32 maintenance cartridge.
Power:
- Power Supply:
AC 100 - 240 V, 50 - 60 Hz for efficient power consumption.
Physical
Attributes:
- Body Color:
Black & White
- Dimensions:
968 x 545 x 395 mm
- Weight:
43 kg
Included
Components:
- Canon imagePROGRAF TC-20 Printer
- US AC Power Cable
- Maintenance Cartridge (Pre-installed)
- 4 Ink Tanks (70 ml each: BK/C/M/Y)
- Ethernet Card (Built-in)
- USB 2.0 High-Speed Interface
- Installation Guide, User Registration Card, Media
Flyer, Warranty Statement
Warranty:
- 1 Year Service Warranty (without adapter, box required for claiming warranty).
